Automotive Powertrain Manufacturing Technology and Know-how Automobile Division
TEST MEASURING EQUIPMENT
To achieve zero PPM, the quality management team at TIC has implemented a robust quality inspection system using various equipment such as a 3D measuring machine, HYPOID GEAR measuring machine, HELICAL&SPUR GEAR tooth profile measuring machine, profile measuring machine, and thermal treatment inspection equipment. By establishing this comprehensive quality inspection system, we have strengthened our quality verification activities to ensure the highest level of quality control.
Inspection equipment
3-DIMENSIONAL MEASURING INSTRUMENT

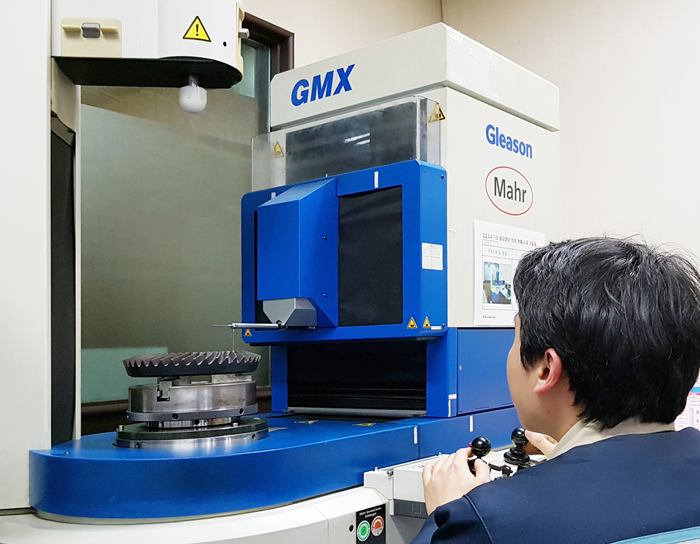

HYPOID GEAR TOOTH MEASURING INSTRUMENT

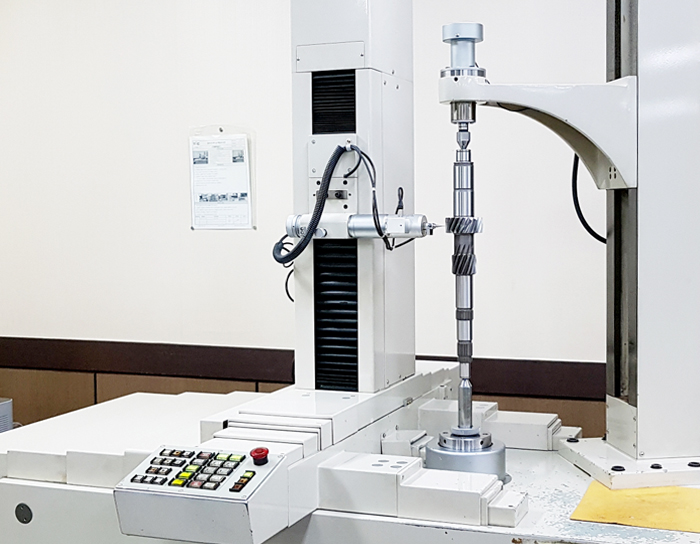

HELICAL & SPUR GEAR TOOTH MEASURING INSTRUMENT
SHAPE MEASURING INSTRUMENT
ROUNDNESS MEASURING INSTRUMENT

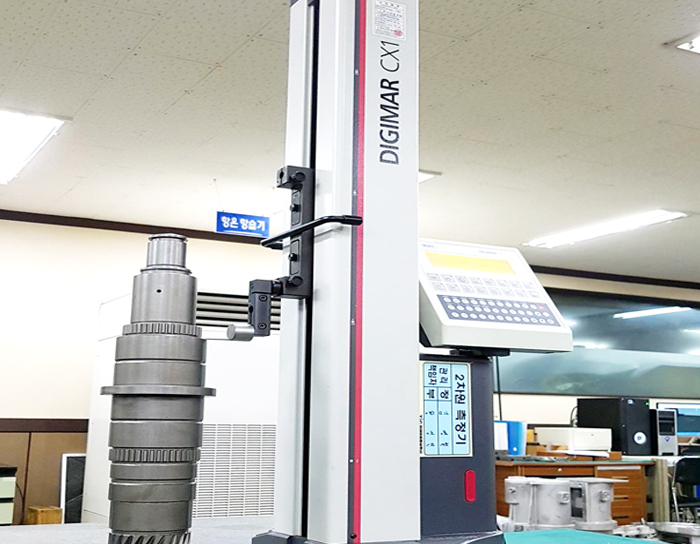

2-DIMENSIONAL MEASURING INSTRUMENT
TOOTH MEASURING INSTRUMENT
MEASURING INSTRUMENT
- 3-DIMENSIONAL MEASURING INSTRUMENT
- VICTOR 102008
- ROUNDNESS MEASURING INSTRUMENT
- RONDCOM NEX α200
- SHAPE MEASURING INSTRUMENT
- CONTOURECORD 1600GH-24
- SURFACE ROUGHNESS GAUGE
- SURFCOM TOUCH 50

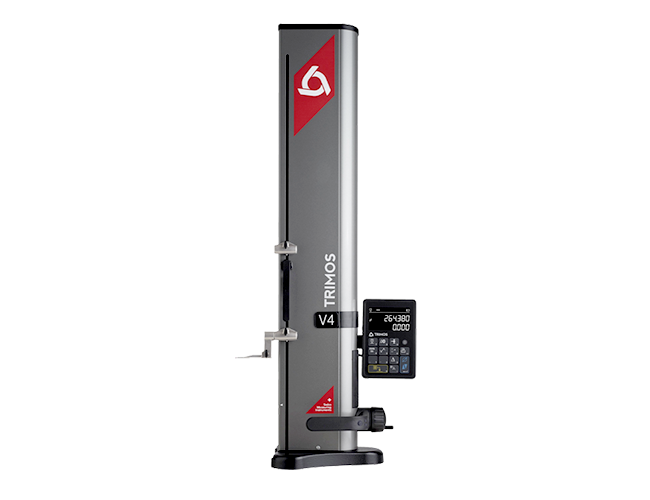

- 2-DIMENSIONAL MEASURING INSTRUMENT
- V4-700
- TOOTH MEASURING INSTRUMENT
- PRIMAR GMX 600
- VICKERS HARDNESS TESTER
- HM-210C

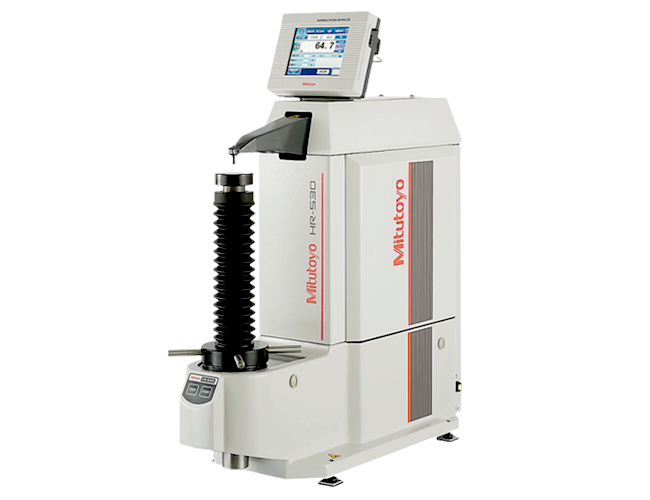

- ROCKWELL HARDNESS TESTER
- HR530
- BRINELL HARDNESS TESTER
- DTB-600N

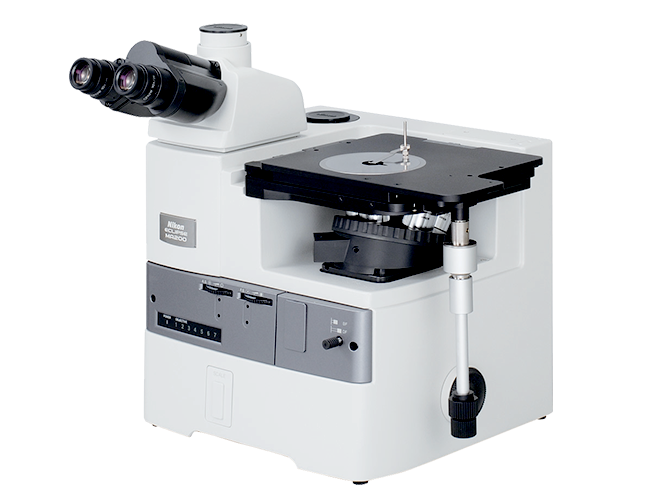

- METAL MICROSCOPE
- MA200

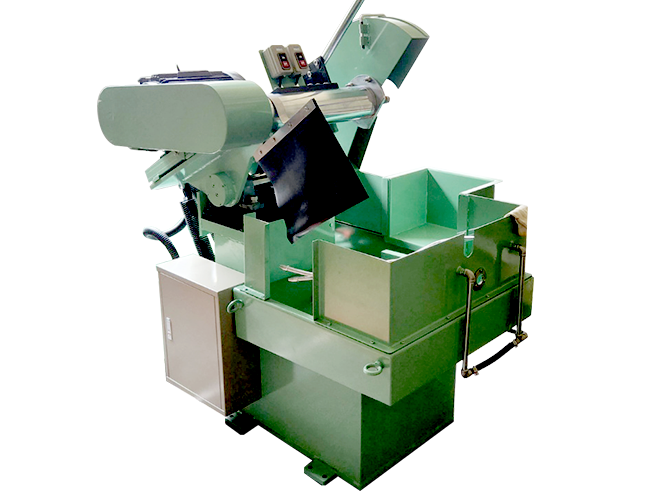

- LARGE-FORMAT CUTTING MACHINE
- ME450WV

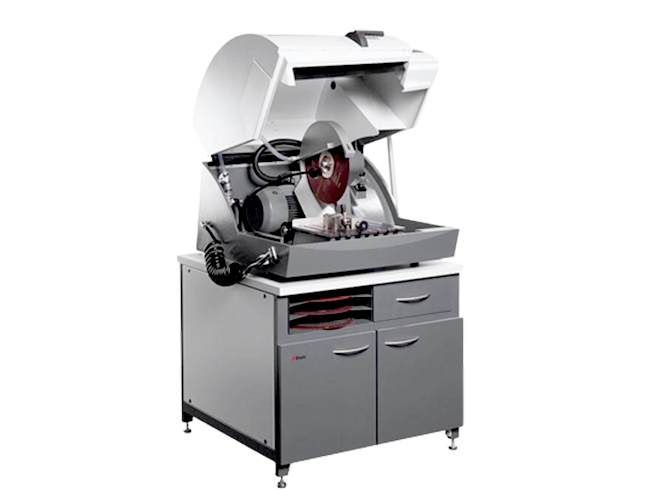

- SMALL-FORMAT CUTTING MACHINE
- LABOTOM-5
- POLISHING MACHINE
- LABOPOL-60
- MOUNTING MACHINE
- CITOPRESS-30
Inspection Machine
- LARGE-FORMAT CUTTING MACHINE
- ME450WV
- SMALL-FORMAT CUTTING MACHINE
- LABOTOM-5
- POLISHING MACHINE
- LABOPOL-60
- MOUNTING MACHINE
- CITOPRESS-30
INSPECTION EQUIPMENT LIST
| No. | PHOTO | EQUIPMENT NAME | MODEL NAME | MANUFACTURER | QUANTITY | REMARKS |
|---|---|---|---|---|---|---|
| 1 | |
3-DIMENSIONAL MEASURING INSTRUMENT | VICTOR 102008 | DUKIN | 1 | 3-DIMENSIONAL MEASURING |
| 2 | |
ROUNDNESS MEASURING INSTRUMENT | RONDCOM NEX α200 | ACCRETECH | 1 | ROUNDNESS CYLINDER MEASUREMENT |
| 3 | |
SHAPE MEASURING INSTRUMENT | CONTOURECORD 1600GH-24 | ACCRETECH | 1 | SHAPE MEASUREMENT |
| 4 | |
SURFACE ROUGHNESS GAUGE | SURFCOM TOUCH 50 | ACCRETECH | 1 | SURFACE ROUGHNESS MEASUREMENT |
| 5 | |
2-DIMENSIONAL MEASURING INSTRUMENT | V4-700 | TRIMOS | 2 | 2-DIMENSIONAL MEASURING |
| 6 | |
TOOTH MEASURING INSTRUMENT | PRIMAR BMX 600 | Mahr | 1 | TOOTH MEASURING |
| 7 | |
VICKERS HARDNESS TESTER | HM-210C | MITUTOYO | 1 | HARDNESS MEASUREMENT |
| 8 | |
ROCKWELL HARDNESS TESTER | HR-530 | MITUTOYO | 1 | HARDNESS MEASUREMENT |
| 9 | |
BRINELL HARDNESS TESTER | DTB-600N | DAE KYUNG TECH | 1 | HARDNESS MEASUREMENT |
| 10 | |
METAL MICROSCOPE | MA200 | NIKON | 1 | MICROSTRUCTURAL OBSERVATION |
| 11 | |
LARGE-FORMAT CUTTING MACHINE | ME450WV | WOOSHIN SCIENCE | 1 | SECTIONING OF SPECIMENS |
| 12 | |
SMALL-FORMAT CUTTING MACHINE | LABOTOM-5 | STRUERS | 1 | SECTIONING OF SPECIMENS |
| 13 | |
POLISHING MACHINE | LABOPOL-60 | STRUERS | 1 | POLISHING OF SPECIMENS |
| 14 | |
MOUNTING MACHINE | CITOPRESS-30 | STRUERS | 1 | SPECIMEN MOLDING |
